RF Power Amplifier 5725-5800MHz 30W Drone Counter Module for Anti Drone System

Place of Origin : China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : T/T, PayPal, Negotiable

Model NO. : PF-AM053

Condition : New

Type : RF Power Amplifier Module

Support Network : All

Information Content : All

Product Name : RF Power Amplifier Module

Frequency : 5725-5800MHz

out Power : 30W

Gain : 50±1dB

Voltage : 24-28V

Product Weight : 910g

RF out : SMA

Output Power : 44.8±1dBm

Intra-Band Fluctuations : ≤3.0dB

Enter The Output Station Wave : ≤2.0

Transport Package : Carton

Specification : 120*55*20mm

Trademark : No

Origin : China

Brand Name : OEM

Packaging Details : Standard Package

Delivery Time : 1-3 Working Days

Supply Ability : 10000 Sets / Month

Contact Now

RF Power Amplifier 5725-5800MHz 30W Drone Counter Module for Anti Drone System
Padi Fly main business includes UAV detector module, handheld detection, backpack detection, vehicle detection, UAV accessories, etc.

Product Description
RF Power Amplifier 5725-5800MHz 30W Drone Counter Module for Anti Drone System
Product Parameters
Brand Name PDFY
Product name
RF Power Amplifier Module
Frequency
5725-5800MHz
Out power
30w
Gain
47±1dB
Voltage
24-28V
Product Size
120*55*20 mm
Product Weight
910 g
Intra-band fluctuations
≤3.0dB
EVM
<5%
Enter the output station Wave
≤2.0
Operating ambient temperature
-40~+55ºC
Working temperature
+ 85ºC Over-temperature alarm and turn off, 65 degrees on
Relative humidity
5%~95%, with no condensation
Storage temperature
-40~+85ºC
RF IN
SMA
RF OUT
SMA
Detailed Photos


RF Power Amplifier 5725-5800MHz 30W Drone Counter Module for Anti Drone SystemRF Power Amplifier 5725-5800MHz 30W Drone Counter Module for Anti Drone SystemRF Power Amplifier 5725-5800MHz 30W Drone Counter Module for Anti Drone SystemRF Power Amplifier 5725-5800MHz 30W Drone Counter Module for Anti Drone System

Company Profile


RF Power Amplifier 5725-5800MHz 30W Drone Counter Module for Anti Drone System

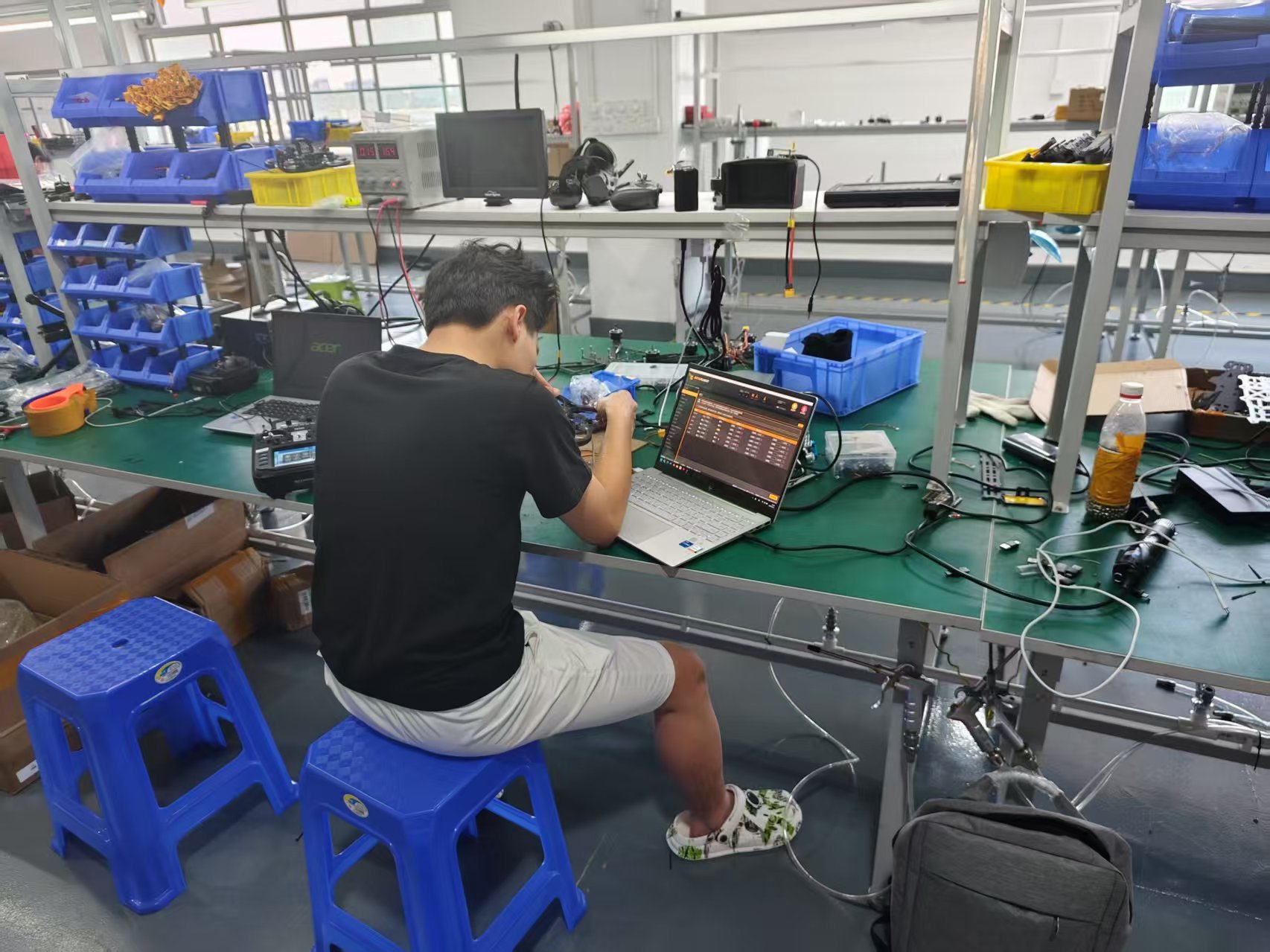

Padi Fly Technology Co. Ltd specializes in the field of advanced technology.

Our company is located in the vibrantcity of Shenzhen,known as a hub of innovation andtechnology in China.

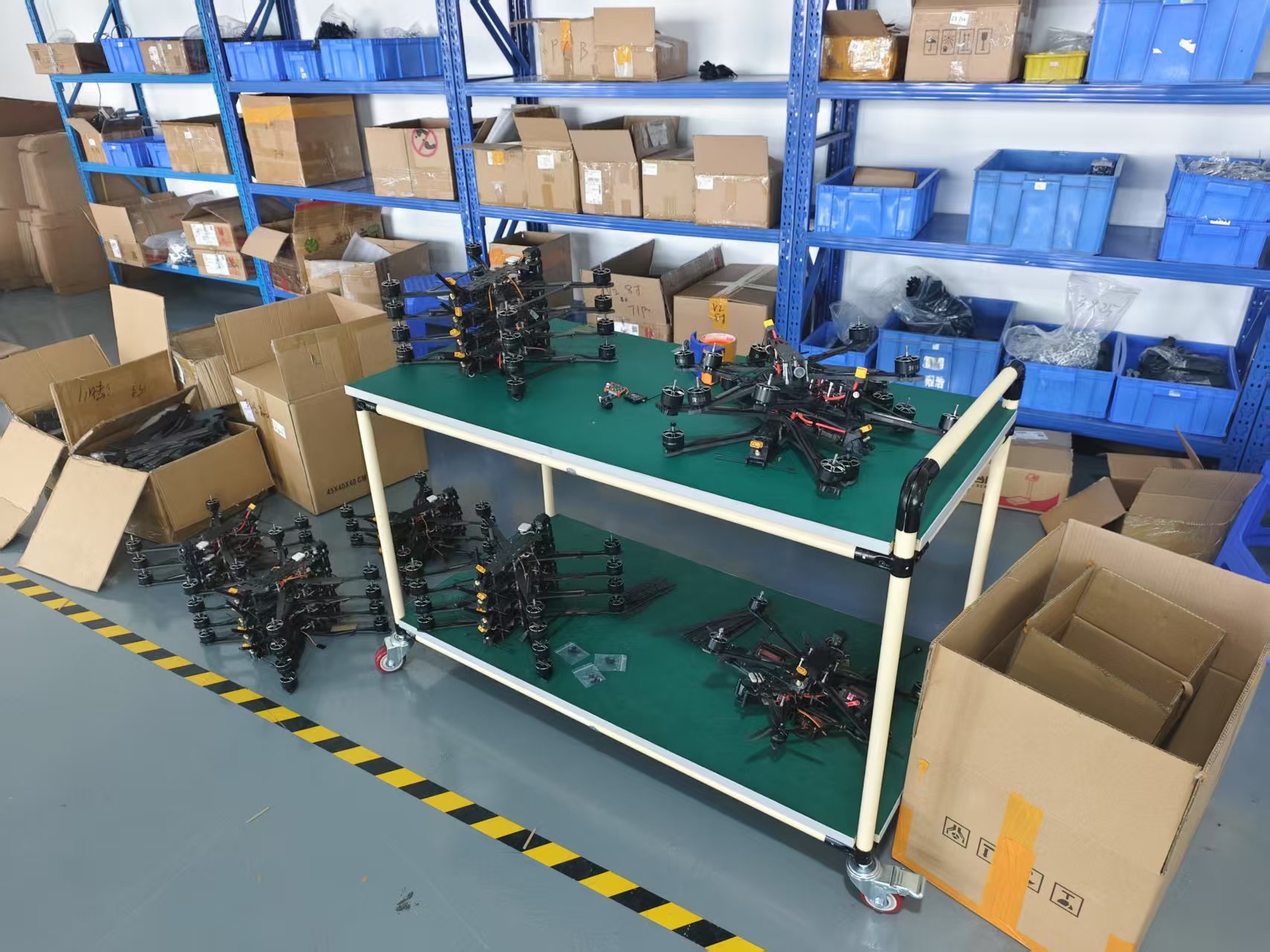

With over 3000 square meters of plant space, we specialize in the design, development, and distribution of FPV drones along with drone countermeasure solution.
We are known for our innovation, quality, and commitment to enhancing the user experience.

RF Power Amplifier 5725-5800MHz 30W Drone Counter Module for Anti Drone SystemRF Power Amplifier 5725-5800MHz 30W Drone Counter Module for Anti Drone SystemRF Power Amplifier 5725-5800MHz 30W Drone Counter Module for Anti Drone SystemRF Power Amplifier 5725-5800MHz 30W Drone Counter Module for Anti Drone System

Our Business Range for FPV drone accessories:
We can provide include: Image transmission, motor, carbon fiber frame, flight control, electrical regulation, antenna, remote control, propeller, charger, etc..

We also provide the industry's professional OEM and ODM technology and services.


Packaging & Shipping


RF Power Amplifier 5725-5800MHz 30W Drone Counter Module for Anti Drone System


FAQ
Q:Why choose PDFLY?
A:1. From real factory: cheaper price, better quality, faster delivery.
2. Quality assurance: Ship after successful testing.
3. After-sales: Professional team to solve problems and technical support.

Q:How can we guarantee quality?
A:1.Always a pre-production sample before mass production;
2.Always final Inspection before shipment;
3.Professional sales staff will communicate with you to confirm every link

Q:What's the lead time?
A:Sample needs 3-7 days, mass production needs 7-10 days, according to your order requirements & volumes.

Q:How to place an order from you?
A:Please send the products you like to us and our professional sales will contact with you within 24 hours to confirm the details of the products and negotiate. After you confirm the order, we will guide you through payment and arrange delivery, tell you the tracking number and help track the logistics.

We look forward to your comments on our products and services.
